Increasing Electrical Demands Drive the Continuous Evolution of Automotive Alternators

With the rapid development of automotive electronic systems, vehicles require increasingly stable and efficient power supply solutions. From basic lighting and starting systems to advanced driver assistance systems, in-vehicle entertainment systems, and numerous electronic control units, modern vehicles depend on reliable electrical energy management.

As a key component of the vehicle charging system, the automotive alternator converts mechanical energy from the engine into electrical energy. During engine operation, the alternator supplies power to vehicle electrical components while continuously charging the battery to ensure stable operation of various systems.

Early vehicles mainly used direct current generators. However, due to their larger size, lower efficiency, and higher maintenance requirements, they were gradually replaced by alternating current alternators. Today, most vehicles use AC alternators, with different structural designs developed to meet various vehicle applications, electrical loads, and operating conditions.

From conventional alternator designs to modern brushless structures, the evolution of automotive alternators reflects the automotive industry's continuous pursuit of higher efficiency, improved reliability, and longer service life.

1. The Development of Automotive Alternators: From DC Generators to AC Systems

DC Generators: Early Power Generation Solutions for Vehicles

Early automobiles used direct current generators to provide electrical power through mechanical commutation systems. Although this design met the basic power requirements of early vehicles, its limitations became increasingly apparent as automotive electrical systems became more complex.

The disadvantages of DC generators include:

· Larger structural size and higher space requirements;

· Relatively lower efficiency;

· Limited performance under high-speed operation;

· Wear of commutation components requiring regular maintenance.

As vehicles demanded more stable electrical power supply, AC alternators gradually became the mainstream solution for automotive charging systems.

AC Alternators: The Mainstream Design in Modern Vehicles

AC alternators use electromagnetic induction principles to convert mechanical energy from the engine into alternating current, which is then converted into usable direct current through a rectifier.

Compared with DC generators, AC alternators provide:

· More compact structure;

· Lower weight;

· Easier maintenance;

· Longer service life;

· Better charging capability during low engine speed operation.

Today, automotive alternators are mainly based on AC alternator technology, with different designs developed according to structure, rectification methods, and magnetic field configurations.

2. Main Types of Automotive Alternators and Their Design Characteristics

Based on structural design and operating principles, automotive AC alternators can be classified into several types, including conventional alternators, integrated alternators, alternators with pumps, brushless alternators, and permanent magnet alternators.

Different designs focus on optimizing:

· Output stability;

· Structural complexity;

· Service life;

· Maintenance requirements;

· Specific vehicle applications.

1. Conventional Alternators: A Mature and Reliable Basic Design

Conventional alternators are one of the most widely used designs in automotive applications. Their main components include:

· Rotor;

· Stator;

· Brushes;

· Slip rings;

· Rectifier;

· Bearings;

· Fan;

· Front and rear covers.

During operation, the rotating magnetic field generated by the rotor induces electrical current in the stator windings. The rectifier then converts the generated alternating current into direct current for the vehicle electrical system.

This design has been widely applied due to its mature technology, reliable performance, and convenient maintenance characteristics.

2. Integrated Alternators: Improving System Integration

Integrated alternators incorporate the electronic regulator inside the alternator assembly, creating a more compact structure compared with traditional external regulator designs.

Their main characteristics include:

· Reduced external connection components;

· Simplified installation structure;

· Improved system integration;

· Better compatibility with vehicle electrical systems.

As vehicle layouts become increasingly compact, integrated designs have become an important development direction for automotive components.

3. Brushless Alternators: Reducing Wear and Improving Durability

Brushless alternators eliminate traditional brushes and slip rings by optimizing the magnetic field generation method for electrical energy conversion.

In conventional alternator designs, brushes are contact components that may experience wear during long-term operation. Brushless structures reduce mechanical contact, helping to lower maintenance requirements.

Key characteristics of brushless alternators include:

· Simplified structure;

· Reduced contact wear;

· Improved long-term operating stability;

· Suitability for applications requiring higher reliability.

With longer vehicle service periods and increasing electronic equipment, brushless designs have become an important direction in automotive alternator development.

4. Permanent Magnet Alternators: Improving Efficiency Through Magnetic Materials

Permanent magnet alternators use permanent magnetic materials in the rotor poles to generate the magnetic field required for power generation.

Compared with traditional excitation methods, permanent magnet designs reduce certain energy conversion processes and allow more flexible structural solutions.

Their characteristics include:

· Stable magnetic field;

· Flexible structural design;

· Suitability for specific application scenarios.

However, different vehicles have different requirements for output characteristics, cost, and control systems. Therefore, permanent magnet alternators need to be matched according to specific application requirements.

3. How Rectifier Designs Influence Alternator Performance

Automotive AC alternators generate alternating current, while vehicle electrical systems require direct current. Therefore, rectifiers are used to convert electrical current.

According to rectifier structure, automotive alternators can be classified into:

· Six-diode alternators;

· Eight-diode alternators;

· Nine-diode alternators;

· Eleven-diode alternators.

Rectifier design influences output characteristics and electrical conversion efficiency.

As vehicle electronic systems continue to expand, stable voltage output and reliable current conversion become increasingly important. Therefore, rectifier design is also a key factor in evaluating automotive alternator quality.

4. Key Factors Affecting Automotive Alternator Reliability

Although different alternator types have different structures, their long-term performance is influenced by multiple factors.

1. Quality of Core Components

Automotive alternators contain various precision components, including bearings, rectifiers, and voltage regulation systems.

Among them:

· Bearings influence operating smoothness and noise performance;

· Rectifiers affect current conversion stability;

· Regulation systems control output voltage stability.

Insufficient performance of any critical component may affect the overall charging system operation.

2. Rationality of Structural Design

Different vehicles have different requirements regarding installation space, electrical loads, and operating environments.

A well-designed alternator needs to consider:

· Heat dissipation capability;

· Structural strength;

· Electrical performance;

· Long-term operating stability.

Therefore, selecting an alternator type depends not only on output capability but also on compatibility with the overall vehicle system.

3. Manufacturing Consistency

For automotive components, stable manufacturing quality is essential for long-term performance.

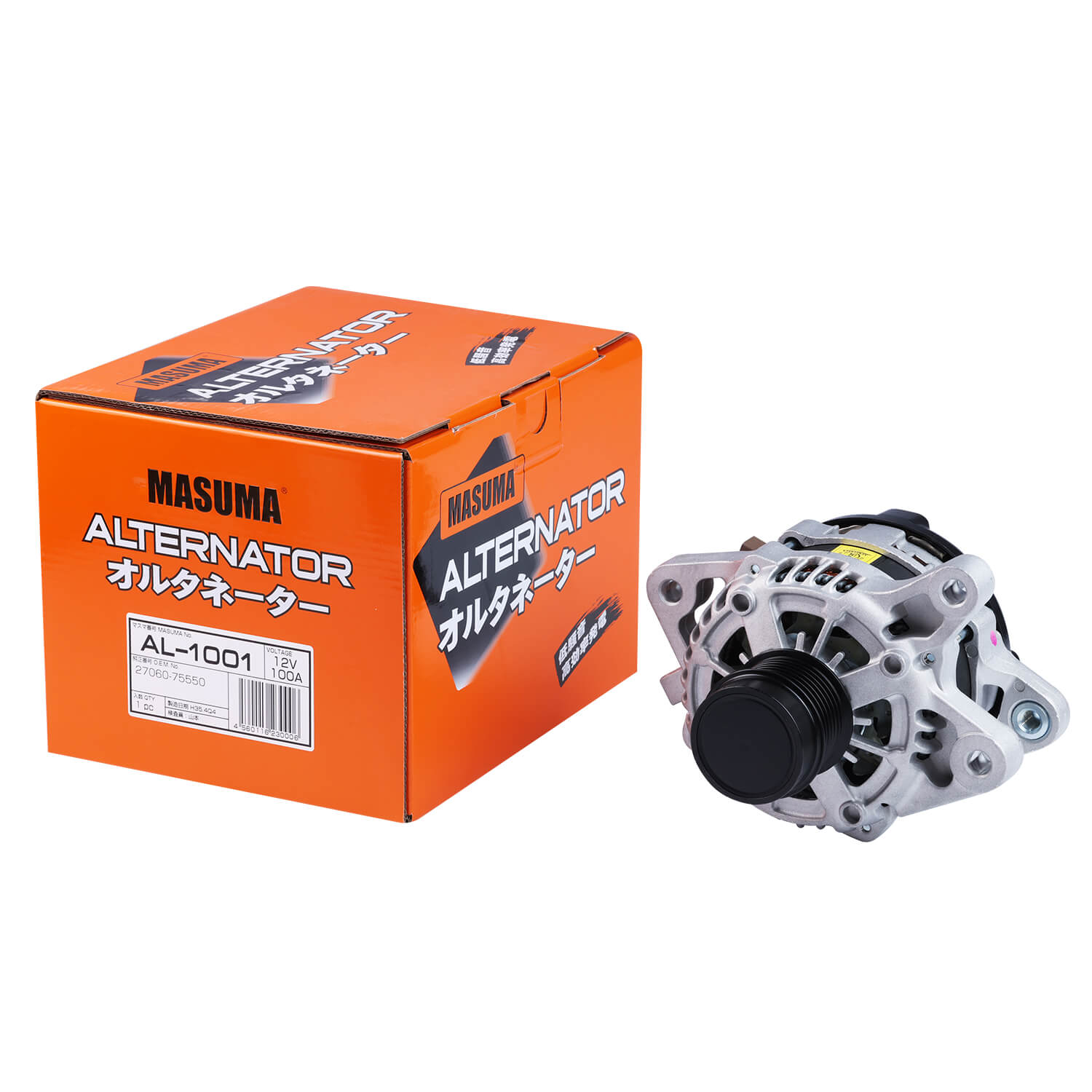

MASUMA automotive alternators use low-noise, high-temperature-resistant bearings, high-quality diodes in rectifiers, and optimized magnetic circuit and rectifier designs to improve output capability and operating stability.

Through control of key components and manufacturing processes, MASUMA ensures products meet the application requirements of different vehicle models.

5. Future Trends in Automotive Alternator Technology

As vehicle electrification continues to increase, automotive alternator technology will continue developing toward higher efficiency, greater integration, and stronger reliability.

Major trends include:

More Efficient Energy Conversion

Increasing electrical loads require alternators to reduce energy loss and improve energy utilization efficiency.

More Reliable Structural Designs

Reducing wear-prone components and improving long-term operating stability will remain important development goals.

Stronger System Compatibility

Modern vehicle platforms are becoming more complex, requiring alternators to achieve better coordination with vehicle electrical management systems.

Conclusion: Different Alternator Types Meet Different Vehicle Application Requirements

From early DC generators to modern AC alternators, and further to brushless and permanent magnet designs, automotive alternator technology has continuously evolved around efficiency, reliability, and adaptability.

Understanding the structural characteristics and application differences of different alternator types helps professionals better evaluate product performance and technology trends.

As a global automotive parts supplier, MASUMA continues to focus on the evolving requirements of automotive electrical systems. Through reliable component design and manufacturing capabilities, MASUMA provides stable alternator solutions for vehicles worldwide and supports the growing demand for high-quality automotive components.
