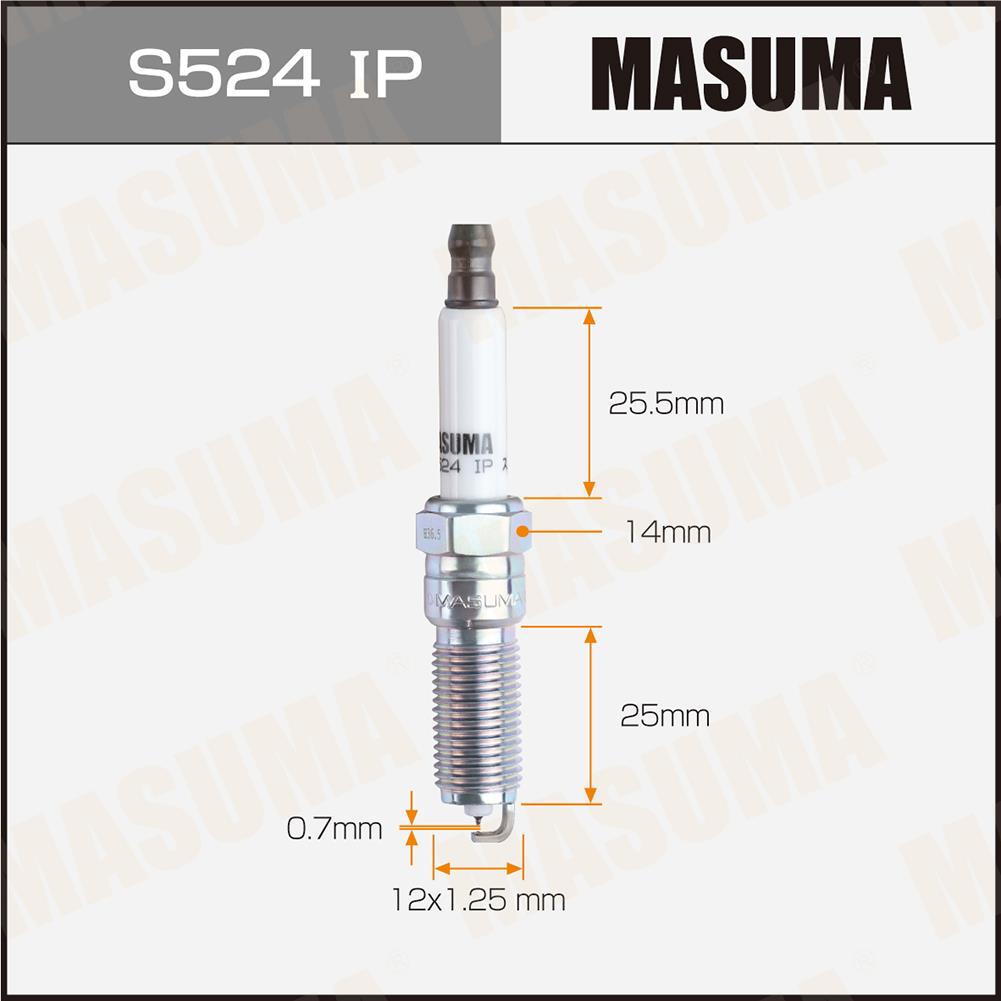

SPARK PLUG  S524IP

Technical Information lridium Platinum
Electrode Gap （mm） 0.7
Thread Size （mm） M12*1.25
Thread Length （mm） 25
Connector type Solid SAE
Spanner Size （mm） 14
Tightening Torque （N·m） 10~20
Manufacturer Heat Range 8
Specification 4 PCS/S BOX
48 PCS/M BOX
384 PCS/CTN
Weight(g) 236 G/4 PCS
BOX
cart Add to Cart
Get Quote
Compatible Vehicles
O.E.M.
COMPETITOR NUMBER
MG
OPEL
MG > MG SUV
MG ZS SUV - 10E4E 1.0 (82kw/111hp) 2017-
View All
MG HS SUV SAS23 15E4E 1.5 (119kw/162hp) 2018-
View All
MG HS SUV CSA6463 15E4E 1.5 (190kw/258hp) 2020-
View All
MG HS SUV - 15E4E 1.5 (209kw/284hp) 2023-
View All
OPEL > ADAM Hatchback
ADAM Hatchback M13 B 10 XFL, D 10 XFL 1.0 (66kw/90hp) 2014-2018
View All
ADAM Hatchback M13 B 10 XFT, D 10 XFT 1.0 (85kw/115hp) 2014-2018
View All
OPEL > ASTRA Hatchback
ASTRA J Hatchback 68 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2012-2015
View All
ASTRA J GTC Hatchback 08 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2012-2018
View All
ASTRA J GTC Hatchback 08 A 16 SHT, B 16 SHT 1.6 (147kw/200hp) 2013-2018
View All
ASTRA K Hatchback 68 B 10 XFL, D 10 XFL 1.0 (77kw/105hp) 2015-2022
View All
ASTRA K Hatchback 68 B 14 XFL, D 14 XFL 1.4 (92kw/125hp) 2015-2022
View All
ASTRA K Hatchback 68 B 14 XFT, D 14 XFT 1.4 (110kw/150hp) 2015-2022
View All
ASTRA K Hatchback 68 B 16 SHT, D 16 SHT 1.6 (147kw/200hp) 2015-2022
View All
ASTRA K Hatchback 68 D 10 XFL 1.0 (66kw/90hp) 2018-2022
View All
ASTRA K Hatchback 68 F 12 SHL 1.2 (81kw/110hp) 2019-2022
View All
ASTRA K Hatchback 68 F 12 SHT 1.2 (96kw/131hp) 2019-2022
View All
ASTRA K Hatchback 68 F 12 SHR 1.2 (107kw/145hp) 2019-2022
View All
OPEL > ASTRA Saloon
ASTRA J Saloon 69 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2012-2015
View All
OPEL > ASTRA Estate
ASTRA J SPORTS TOURER Estate 35 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2012-2015
View All
ASTRA K SPORTS TOURER Estate 35 B 10 XFL, D 10 XFL 1.0 (77kw/105hp) 2015-2022
View All
ASTRA K SPORTS TOURER Estate 35 B 14 XFL, D 14 XFL 1.4 (92kw/125hp) 2015-2022
View All
ASTRA K SPORTS TOURER Estate 35 B 14 XFT, D 14 XFT 1.4 (110kw/150hp) 2015-2022
View All
ASTRA K SPORTS TOURER Estate 35 B 16 SHT, D 16 SHT 1.6 (147kw/200hp) 2015-2022
View All
ASTRA K SPORTS TOURER Estate 35 D 10 XFL 1.0 (66kw/90hp) 2018-2022
View All
ASTRA K SPORTS TOURER Estate 35 F 12 SHL 1.2 (81kw/110hp) 2019-2022
View All
ASTRA K SPORTS TOURER Estate 35 F 12 SHT 1.2 (96kw/131hp) 2019-2022
View All
ASTRA K SPORTS TOURER Estate 35 F 12 SHR 1.2 (107kw/145hp) 2019-2022
View All
OPEL > ASTRA Estate Van
ASTRA K Estate Van 35 D 10 XFL 1.0 (77kw/105hp) 2018-
View All
ASTRA K Estate Van 35 D 14 XFT 1.4 (110kw/150hp) 2018-
View All
OPEL > CASCADA Convertible
CASCADA Convertible 67 A 16 SHT, B 16 SHT, D 16 SHT 1.6 (147kw/200hp) 2013-2018
View All
CASCADA Convertible 67 A 16 XHT, B 16 SHL, D 16 SHL 1.6 (125kw/170hp) 2013-2019
View All
CASCADA Convertible 67 D 16 SHJ 1.6 (100kw/136hp) 2018-2019
View All
OPEL > CORSA Hatchback
CORSA E Hatchback 08, 68 B 10 XFL, D 10 XFL, F 10 XFL 1.0 (66kw/90hp) 2014-
View All
CORSA E Hatchback 08, 68 B 10 XFT, D 10 XFT 1.0 (85kw/115hp) 2014-
View All
OPEL > INSIGNIA Saloon
INSIGNIA A Saloon 69 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2013-2017
View All
OPEL > INSIGNIA Hatchback
INSIGNIA A Hatchback 68 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2013-2017
View All
INSIGNIA B GRAND SPORT Hatchback 68 B 15 SFL, D 15 SFL 1.5 (103kw/140hp) 2017-
View All
INSIGNIA B GRAND SPORT Hatchback 68 B 15 SFT, D 15 SFT 1.5 (121kw/165hp) 2017-
View All
INSIGNIA B GRAND SPORT Hatchback 68 D 16 SHT 1.6 (147kw/200hp) 2018-
View All
OPEL > INSIGNIA Estate
INSIGNIA A SPORTS TOURER Estate 35 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2013-2017
View All
INSIGNIA A COUNTRY TOURER Estate 47 A 16 XHT, B 16 SHL 1.6 (125kw/170hp) 2014-2017
View All
INSIGNIA B SPORTS TOURER Estate 35 B 15 SFL, D 15 SFL 1.5 (103kw/140hp) 2017-
View All
INSIGNIA B SPORTS TOURER Estate 35 B 15 SFT, D 15 SFT 1.5 (121kw/165hp) 2017-
View All
INSIGNIA B COUNTRY TOURER Estate 47 B 15 SFT, D 15 SFT 1.5 (121kw/165hp) 2017-
View All
INSIGNIA B SPORTS TOURER Estate 35 D 16 SHT 1.6 (147kw/200hp) 2018-
View All
INSIGNIA B COUNTRY TOURER Estate 47 D 16 SHT 1.6 (147kw/200hp) 2018-
View All
OPEL > MOKKA / MOKKA X SUV
MOKKA / MOKKA X SUV _76 B 14 XFT 1.4 (112kw/152hp) 2016-
View All
OPEL > ZAFIRA MPV
ZAFIRA TOURER C MPV 75 A 16 XHT, B 16 SHL, D 16 SHL 1.6 (125kw/170hp) 2012-
View All
ZAFIRA TOURER C MPV 75 A 16 SHT, B 16 SHT, D 16 SHT 1.6 (147kw/200hp) 2013-
View All
ZAFIRA TOURER C MPV 75 D 16 SHJ 1.6 (100kw/136hp) 2018-2019
View All
10427930 12683541 55488380 55490097
Owner
Number
NGK
ILNAR8B7G
S524IP
The manufacturer reserves the right to change the product specifications,appearance, packaging, and production location without prior notice.
