刹车盘

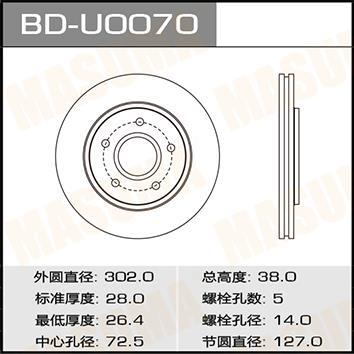

BRAKE DISC  BD-U0070

Outer Diameter （mm） 302
Height （mm） 38
Brake Disc Thickness （mm） 28
Centering Diameter （mm） 72.5
Num. of holes 5
Min. thickness （mm） 26.4
Brake Disc Type Vented
Specification 2 PCS/BOX
Weight(g) 17670 G/2 PCS
BOX
cart Add to Cart
Get Quote
Compatible Vehicles
O.E.M.
COMPETITOR NUMBER
CHRYSLER
DODGE
FIAT
CHRYSLER > GRAND MPV
GRAND VOYAGER V MPV RT EGL 3.8 (142kw/193hp) 2007-
View All
GRAND VOYAGER V MPV RT ENS 2.8 (120kw/163hp) 2007-
View All
GRAND VOYAGER V MPV RT EGV 3.3 (125kw/170hp) 2008-
View All
GRAND VOYAGER V MPV RT ERB 3.6 (208kw/283hp) 2011-
View All
GRAND VOYAGER V MPV RT ERB 3.6 (211kw/287hp) 2011-
View All
DODGE > JOURNEY MPV
JOURNEY MPV - BWD, ECE 2.0 (103kw/140hp) 2008-
View All
JOURNEY MPV - EDG 2.4 (125kw/170hp) 2008-
View All
JOURNEY MPV - EGF 3.5 (173kw/235hp) 2008-2010
View All
JOURNEY MPV - ECE 2.0 (100kw/136hp) 2008-2011
View All
JOURNEY MPV - ED3, EDG 2.4 (125kw/170hp) 2009-
View All
JOURNEY MPV - EER 2.7 (136kw/185hp) 2009-
View All
JOURNEY MPV - EER 2.7 (136kw/185hp) 2009-2011
View All
JOURNEY MPV - ERB 3.6 (211kw/287hp) 2012-
View All
JOURNEY MPV - ERB 3.6 (206kw/280hp) 2012-2015
View All
JOURNEY MPV - ERB 3.6 (206kw/280hp) 2013-
View All
DODGE > JOURNEY Box Body/MPV
JOURNEY VAN Box Body/MPV JC ECE 2.0 (103kw/140hp) 2008-2011
View All
JOURNEY VAN Box Body/MPV JC EER 2.7 (136kw/185hp) 2009-2011
View All
JOURNEY VAN Box Body/MPV JC ED3 2.4 (125kw/170hp) 2009-2012
View All
JOURNEY VAN Box Body/MPV JC ERB 3.6 (211kw/287hp) 2011-
View All
DODGE > NITRO SUV
NITRO SUV - EKG 3.7 (157kw/214hp) 2006-2012
View All
NITRO SUV - EKG 3.7 (157kw/214hp) 2006-2012
View All
FIAT > FREEMONT MPV
FREEMONT MPV 345_ ERB 3.6 (206kw/280hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000 2.0 (100kw/136hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000, 940 A5.000 2.0 (103kw/140hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000 2.0 (120kw/163hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000 2.0 (120kw/163hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000, 940 A5.000 2.0 (125kw/170hp) 2011-2015
View All
FREEMONT MPV 345_ 939 B5.000, 940 A5.000 2.0 (125kw/170hp) 2011-2015
View All
FREEMONT MPV 345_ ED3, EDG 2.4 (125kw/170hp) 2011-2015
View All
FREEMONT MPV 345_ ERB 3.6 (206kw/280hp) 2011-2016
View All
K04779783AB K04779783AA K04721995AB K04721995AA K04721933AB V5019783AA 4721995AB 4721995AA 2AMV9783AA 4779783AB 4779783AA 4721933AB 068032944AA 04779783AB 04779783AA 04721995AA 04721933AB 7B0615301C 7B0615301B 7B0615301A K68032944AB K68032944AA 680322944AA 68032944AB 68032944AA
Owner
Number
TEXTAR
92181503
BREMBO
09.N125.11
BD-U0070
The manufacturer reserves the right to change the product specifications,appearance, packaging, and production location without prior notice.
