刹车盘

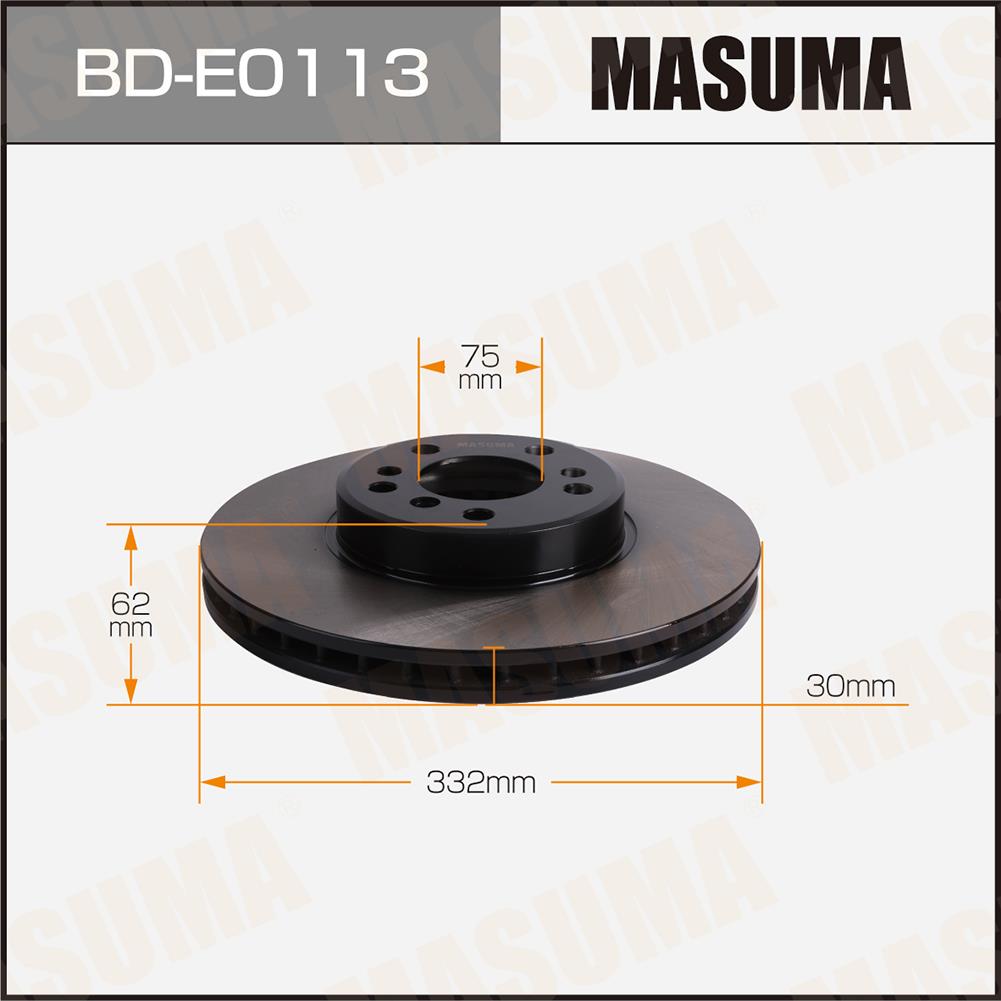

BRAKE DISC  BD-E0113

Outer Diameter （mm） 332
Height （mm） 62
Brake Disc Thickness （mm） 30
Centering Diameter （mm） 75
Num. of holes 5+2+1
Min. thickness （mm） 28.4
Brake Disc Type Vented
Specification
Weight(g) G/PC
BOX
cart Add to Cart
Get Quote
Compatible Vehicles
O.E.M.
COMPETITOR NUMBER
BMW
TOYOTA
BMW > X3 SUV
X3 SUV E83 M57 D30 (306D5) 3.0 (210kw/286hp) 2006-2008
View All
X3 SUV E83 M57 D30 (306D5) 3.0 (210kw/286hp) 2008-2011
View All
BMW > X5 SUV
X5 SUV E53 M62 B44 (448S2) 4.4 (210kw/286hp) 2000-2003
View All
X5 SUV E53 M54 B30 (306S3) 3.0 (170kw/231hp) 2000-2006
View All
X5 SUV E53 M57 D30 (306D1) 2.9 (135kw/184hp) 2001-2003
View All
X5 SUV E53 M57 D30 (306D2) 3.0 (160kw/218hp) 2003-2006
View All
X5 SUV E53 N62 B44 A 4.4 (235kw/320hp) 2003-2006
View All
X5 SUV E53 M57 D30 (306D2) 3.0 (155kw/211hp) 2003-2006
View All
X5 SUV E70 N52 B30 A, N52 B30 AF, N52 B30 BF 3.0 (200kw/272hp) 2006-2008
View All
X5 SUV E70 N52 B30 A 3.0 (200kw/272hp) 2008-2010
View All
X5 SUV E70 M57 D30 (306D3), N57 D30 A 3.0 (155kw/211hp) 2008-2013
View All
X5 SUV E70 N57 D30 A 3.0 (180kw/245hp) 2010-2013
View All
X5 SUV F15, F85 N47 D20 D 2.0 (155kw/211hp) 2013-2015
View All
X5 SUV F15, F85 N47 D20 D 2.0 (160kw/218hp) 2013-2015
View All
X5 SUV F15, F85 N47 D20 D 2.0 (160kw/218hp) 2013-2015
View All
X5 SUV F15, F85 B47 D20 B, N47 D20 D 2.0 (155kw/211hp) 2013-2018
View All
X5 SUV F15, F85 N57 D30 A 3.0 (183kw/249hp) 2013-2018
View All
X5 SUV F15, F85 N57 D30 A 3.0 (190kw/258hp) 2013-2018
View All
X5 SUV F15, F85 N57 D30 A 3.0 (204kw/277hp) 2013-2018
View All
X5 SUV F15, F85 N57 D30 A 3.0 (210kw/286hp) 2013-2018
View All
X5 SUV F15, F85 N20 B20 A 2.0 (180kw/245hp) 2015-2018
View All
X5 SUV F15, F85 B47 D20 B 2.0 (170kw/231hp) 2015-2018
View All
X5 SUV F15, F85 B47 D20 B 2.0 (170kw/231hp) 2015-2018
View All
BMW > X6 SUV
X6 SUV E71, E72 M57 D30 (306D3) 3.0 (173kw/235hp) 2008-2010
View All
X6 SUV E71, E72 N57 D30 A 3.0 (155kw/211hp) 2010-2014
View All
X6 SUV E71, E72 N57 D30 A 3.0 (180kw/245hp) 2010-2014
View All
X6 SUV E71, E72 N55 B30 A 3.0 (235kw/320hp) 2012-2014
View All
X6 SUV F16, F86 N55 B30 A 3.0 (225kw/306hp) 2014-2019
View All
X6 SUV F16, F86 N55 B30 A 3.0 (240kw/326hp) 2014-2019
View All
TOYOTA > COROLLA Saloon
COROLLA Saloon ZZE150_ 4ZZ-FE 1.4 (71kw/97hp) 2006-2013
View All
6859679 6794304 6794300 6766036 6765457 6756045 6750713 34116859679 34116794304 34116794300 34116766036 34116765457 34116750713 34116756045
Owner
Number
TEXTAR
92107200
TEXTAR
92107205
BREMBO
09.C896.11
BREMBO
09.C896.1X
BD-E0113
The manufacturer reserves the right to change the product specifications,appearance, packaging, and production location without prior notice.
