刹车盘

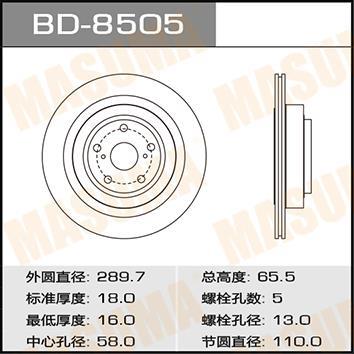

BRAKE DISC  BD-8505

Outer Diameter （mm） 289.7
Height （mm） 65.5
Brake Disc Thickness （mm） 18
Centering Diameter （mm） 58.02
Num. of holes 5+2
Min. thickness （mm） 16
Brake Disc Type Vented
Specification 2 PCS/BOX
Weight(g) 11600 G/2 PCS
BOX
cart Add to Cart
Get Quote
Compatible Vehicles
O.E.M.
COMPETITOR NUMBER
SUBARU
SUBARU > FORESTER SUV
FORESTER SUV SG5 EJ205 2.0 (130kw/177hp) 2002-2005
View All
FORESTER SUV SG9 EJ25 2.5 (115kw/156hp) 2002-2008
View All
FORESTER SUV SG9 EJ25 2.5 (155kw/211hp) 2003-2005
View All
FORESTER SUV S11SG, S12SH EJ255 2.5 (169kw/230hp) 2005-2008
View All
FORESTER SUV SH9 EJ25 2.5 (126kw/171hp) 2009-2013
View All
SUBARU > IMPREZA Saloon
IMPREZA Saloon GD EJ205 2.0 (160kw/218hp) 2000-2005
View All
IMPREZA Saloon GDA EJ205 2.0 (168kw/228hp) 2002-2005
View All
IMPREZA Saloon GDA EJ205 2.0 (165kw/225hp) 2002-2007
View All
IMPREZA Saloon GDF EJ257 2.5 (206kw/280hp) 2005-2007
View All
IMPREZA Saloon GDA EJ20 (Turbo) 2.0 (184kw/250hp) 2005-2007
View All
IMPREZA Saloon GDF EJ257 2.5 (221kw/300hp) 2005-2007
View All
IMPREZA Saloon GD EJ255 2.5 (169kw/230hp) 2005-2008
View All
IMPREZA Saloon GE, GV EJ255 2.5 (200kw/272hp) 2007-2007
View All
SUBARU > IMPREZA Estate
IMPREZA Estate GG EJ205 2.0 (160kw/218hp) 2000-2005
View All
IMPREZA Estate GGA EJ205 2.0 (165kw/225hp) 2002-2006
View All
IMPREZA Estate GGA EJ205 2.0 (184kw/250hp) 2005-2007
View All
IMPREZA Estate GG EJ257 2.5 (221kw/300hp) 2005-2007
View All
IMPREZA Estate GG EJ255 2.5 (169kw/230hp) 2005-2008
View All
IMPREZA Estate GG EJ255 2.5 (198kw/269hp) 2007-2007
View All
SUBARU > LEGACY Estate
LEGACY III Estate BH9 EJ25 2.5 (115kw/156hp) 1998-2003
View All
LEGACY III Estate BH EJ201 2.0 (92kw/125hp) 1998-2003
View All
LEGACY III Estate BHE EZ30 3.0 (154kw/209hp) 2000-2003
View All
LEGACY IV Estate BP5 EJ202 2.0 (101kw/138hp) 2003-2005
View All
LEGACY IV Estate BP EZ30 3.0 (180kw/245hp) 2003-2009
View All
LEGACY IV Estate BP5 EJ204 2.0 (121kw/165hp) 2005-2009
View All
LEGACY IV Estate BP5 EJ204 2.0 (110kw/150hp) 2007-2009
View All
LEGACY IV Estate BP9 EJ25 2.5 (127kw/173hp) 2008-2009
View All
LEGACY IV Estate BPD EE20Z 2.0 (110kw/150hp) 2008-2009
View All
SUBARU > LEGACY Saloon
LEGACY III Saloon BE EJ25 2.5 (115kw/156hp) 1998-2003
View All
LEGACY III Saloon BE EJ201 2.0 (92kw/125hp) 1999-2003
View All
LEGACY IV Saloon BL5 EJ202 2.0 (101kw/138hp) 2003-2005
View All
LEGACY IV Saloon B13 EZ30 3.0 (180kw/245hp) 2003-2009
View All
LEGACY IV Saloon BL5 EJ204 2.0 (121kw/165hp) 2005-2009
View All
LEGACY IV Saloon BL5 EJ204 2.0 (110kw/150hp) 2007-2009
View All
LEGACY IV Saloon BL EJ25 2.5 (127kw/173hp) 2007-2009
View All
LEGACY IV Saloon BLD EE20Z 2.0 (110kw/150hp) 2008-2009
View All
LEGACY V Saloon BM EJ253 2.5 (123kw/167hp) 2009-2014
View All
SUBARU > OUTBACK Estate
OUTBACK Estate BHE EZ30 3.0 (154kw/209hp) 2000-2003
View All
OUTBACK Estate BE, BH EJ25 2.5 (115kw/156hp) 2000-2003
View All
OUTBACK Estate BP5 EJ202 2.0 (101kw/137hp) 2003-2005
View All
OUTBACK Estate BL, BP EZ30 3.0 (180kw/245hp) 2003-2009
View All
26700AE081 26700AE080 26700AE070 26700-AE030
Owner
Number
TEXTAR
92173603
BREMBO
09.B041.11
BREMBO
09.B041.1X
BD-8505
The manufacturer reserves the right to change the product specifications,appearance, packaging, and production location without prior notice.
