TIRE PRESSURE SENSOR

■   The tire pressure sensor, also referred to as the tire pressure monitoring sensor, is a high-precision sensing device built on MEMS (Micro-Electro-Mechanical Systems) technology. It is primarily installed inside the tire cavity or on the valve stem. Its core function is to collect real-time tire pressure and temperature data, then transmit this data via wireless RF signals to the vehicle’s onboard central display or a standalone monitor. When the system detects over-inflation, under-inflation, abnormal temperature, or a slow leak, it instantly issues audible and visual alerts, so the driver can respond promptly and address the issue before it becomes a serious hazard.
■   Tires are the only part of the vehicle that makes contact with the road. Proper tire pressure is critical to driving safety, fuel economy, and tire service life. Statistics show that over 70% of highway accidents are caused by abnormal tire pressure. Issues such as blowouts, under-inflation, and overheating often pose hidden risks to driving safety. As the core component of the Tire Pressure Monitoring System (TPMS), the tire pressure sensor acts like an intelligent sentinel mounted on the tire, monitoring tire condition around the clock in real time. By mitigating tire pressure risks at the source, it has become an indispensable safety feature in modern vehicles.

■   Based on installation method and working principle, tire pressure sensors are mainly divided into two categories, catering to the needs of different vehicle owners:

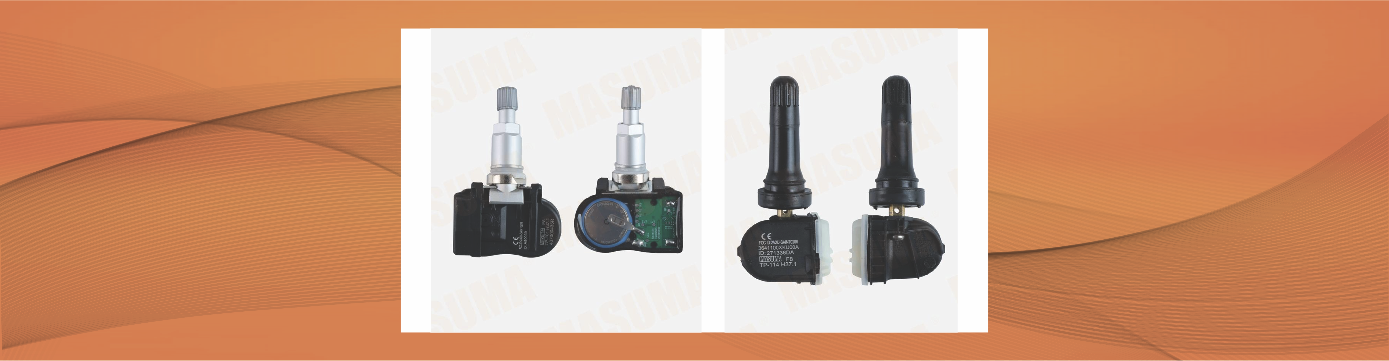

■   Direct TPMS sensors are divided into internal and external types. The internal type is mounted directly on the inside of the rim, fitted against the base of the valve stem. It offers extremely high monitoring accuracy, stable data, strong anti-interference capability, and long service life, making it the mainstream choice for OEM vehicles and high-end aftermarket modifications. The external type screws directly onto the outside of the valve stem. It requires no tire dismounting and offers easy installation, making it cost-effective and ideal for owners who want to add TPMS themselves. Its accuracy is slightly lower than that of the internal type but fully meets the basic monitoring needs of everyday family cars. Direct sensors can precisely display the real-time pressure and temperature of each tire, enabling faster identification of the problematic tire.
■   Indirect TPMS sensors: These have no independent physical sensing module. They rely on the vehicle's ABS wheel speed sensors to determine tire pressure abnormalities by comparing rotational speed differences between wheels. No additional hardware installation is required, making the cost lower. However, they cannot display specific pressure values, have limited monitoring accuracy, and can only warn of major pressure loss. They are suitable for some entry-level economy models and offer limited potential for later upgrades.

■   Compared with traditional manual tire pressure checks, MASUMA tire pressure sensors deliver multiple critical advantages, providing all-around protection for driving safety:
1. OEM-quality direct-fit replacements — covering over 95% of vehicle models worldwide
2. Universal programmable replacement sensors — covering over 95% of vehicle models worldwide
3. Activation/trigger tools for replacement sensors (for Ford and GM series)
4. Custom add-on TPMS kits (4 sensors + display)
5. TPMS integrated into the vehicle's body electronic system
The product operates in environments from -40°C to +125°C, with a pressure detection range of 0 to 900 kPa, and features an acceleration sensing function. It primarily uses Infineon chips, automotive-grade Murata electronic components from Japan, and Maxell automotive-grade batteries. All electronic components and raw materials are 100% compliant with automotive industry standards. The sensors can be matched using mainstream diagnostic tools such as ATEQ and Autel. During the production process, every sensor undergoes 100% battery capacity testing, 100% RF high/low frequency testing, and 100% pressure accuracy testing.

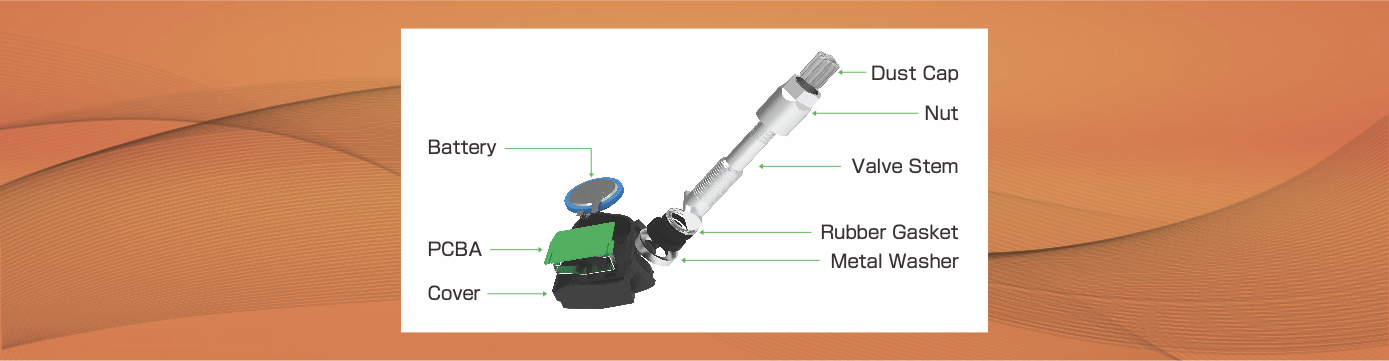

■   The tire pressure sensor is compact and lightweight, with core components working in clearly defined roles to ensure stable operation: At its heart is a MEMS pressure sensing chip, which detects pressure changes and converts them into electrical signals. A temperature sensing module simultaneously monitors tire operating temperature, helping to prevent blowouts caused by overheating. A built-in RF transmitter handles data transmission. A high-performance lithium battery provides sustained power. It is housed in a high-strength, waterproof, and explosion-proof casing designed to withstand vibration, mud, water, and high temperatures inside the tire. A dedicated mounting base and valve stem assembly accommodate different installation methods. The overall structure is rugged, offering excellent vibration and aging resistance.

■   Internal sensors must be installed by a professional. Do not attempt to disassemble the sensor. Unauthorized disassembly may damage the sensor chip and valve stem assembly. After installation, dynamic wheel balancing must be performed to prevent driving vibration.
■   When installing external sensors, avoid using excessive force that could strip the valve stem threads. Handle gently during daily car washes or tire inflation to prevent impact damage. Periodically check the tightness to prevent the sensor from coming loose.
■   Do not immerse the sensor in strong acid or alkaline liquids. Keep it away from high-temperature baking and sharp objects to prevent housing damage that could lead to water ingress and short circuits.
■   After tire rotation or replacement, the sensor relearn/matching procedure must be performed promptly to ensure proper data transmission and avoid false alarms.
■   If the sensor continues to sound alarms or shows no data, NEVER disassemble or attempt to repair it yourself. Contact a qualified technician for inspection and replacement.

■   Regular maintenance extends sensor service life and safeguards monitoring accuracy: Every 10,000 km, inspect the sensor’s fastening condition and housing integrity. For external sensors, clean any dust and debris from the valve stem area. Every 20,000 km, verify the tire pressure readings to ensure accuracy. During long-term vehicle storage, external sensors can be properly stored, away from direct sunlight and rain. When the battery is depleted, it is recommended to replace the entire sensor unit. For external sensors, the compatible battery can be replaced, followed by a system re-learn procedure. Avoid prolonged driving with over- or under-inflated tires to avoid subjecting the sensor to prolonged strain. These measures help maximize sensor lifespan and ensure continued driving safety protection.
