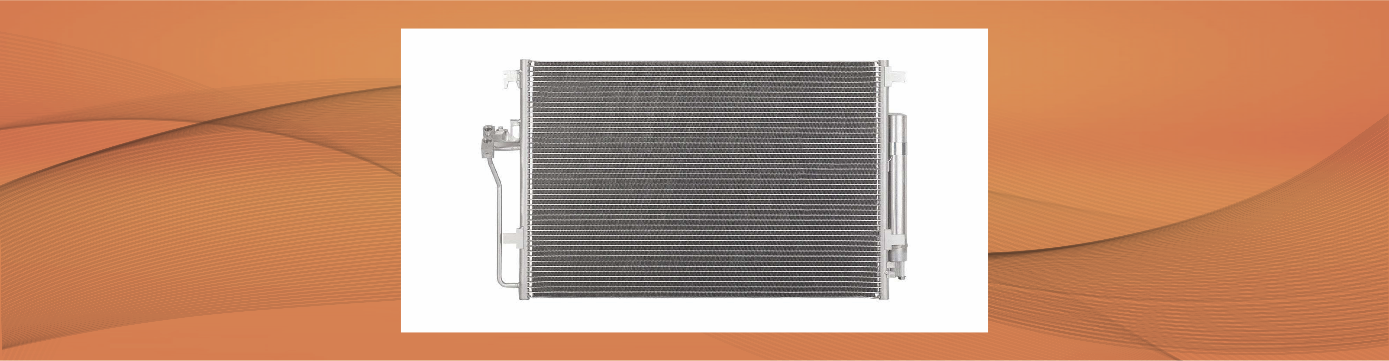

■ The automobile air conditioning condenser is a crucial component in the car's air conditioning system, serving the function of cooling and condensing the refrigerant. It is typically installed in the engine compartment of the vehicle. Through heat transfer and exchange processes, it transfers the heat released from the refrigerant in the car's compressor to the external air, causing the refrigerant to change from a gaseous to a liquid state, thus achieving the cooling effect of the air conditioning system.

Classification

■ Automobile condensers can be classified into various types based on its cooling medium, structure, and purpose, such as water - cooled and air - cooled, tubular-type and plate-type, air conditioning condensers and engine condensers. Dif ferent types of condensers play important roles in various automobile systems, ensuring the normal operation of the engine and air conditioning system.
■ According to different classification criteria, automobile condensers can be categorized as follows.
1. Classification by cooling medium:
Automobile condensers can be divided into water-cooled and air-cooled types based on the cooling medium.
Water-cooled condensers are the most common type, absorbing and dissipating heat through circulating water. They typically consist of a water tank, water pump, radiator, and fan. The heat generated by the engine is introduced into the radiator by the water pump through the coolant, and then dissipated through the fan's blowing, ultimately lowering the temperature.
Air-cooled condensers dissipate heat through air. They usually consist of cooling fins and a fan, with the cooling fins dissipating heat through air flow. Air-cooled condensers are suitable for some special environments, such as high-temperature regions or situations where water-cooled condensers cannot be used.
2. Classification by structure:
Automobile condensers can be divided into tubular-type condensers and plate-type condensers based on their structure.
Tubular-type condensers are the most common type, composed of a series of metal tubes through which coolant and air exchange heat.
The advantage of tubular - type condensers lies in their better heat dissipation effect, but due to their complex structure, manufacturing costs are relatively high.
Plate-type condensers are composed of a series of metal plates, achieving heat exchange through the gaps between the metal plates.
Compared to tubular-type condensers, plate-type condensers have a simpler structure and lower manufacturing costs, but their heat dissipation effect is slightly inferior to tubular-type condensers.
3. Classification by purpose:
Automobile condensers can be divided into air conditioning condensers and engine condensers based on their purpose.

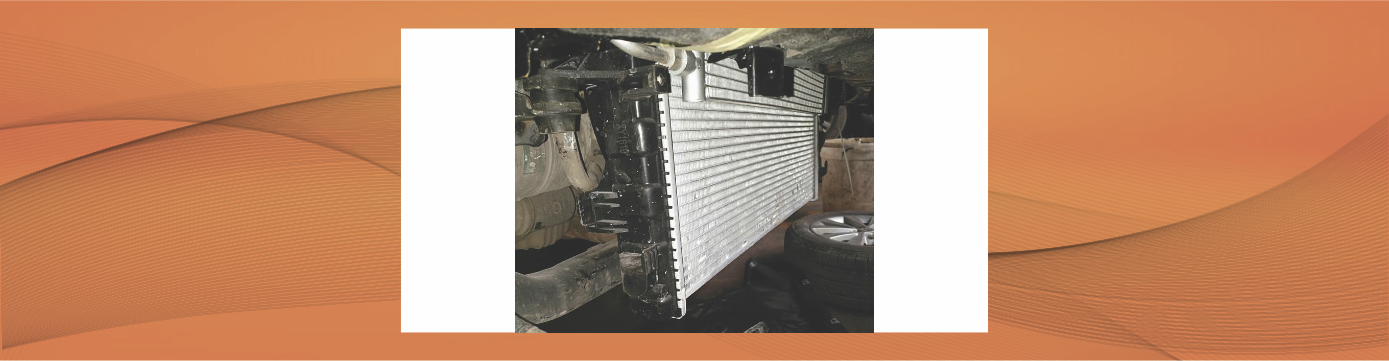

Air conditioning condensers are mainly used in automobile air conditioning systems. They achieve the air conditioning effect by cooling the refrigerant. Air conditioning condensers are usually located at the front of the vehicle, connected to the radiator, and dissipate heat through fan blowing.
Engine condensers are used in the engine cooling system. They dissipate the heat generated by the engine through coolant. Engine condensers are usually located at the front of the engine, connected to the radiator, and dissipate heat through fan blowing.

The Importance and Functions of Automobile Condensers in Air Conditioning Systems:
■ Primarily, the main function of an automobile condenser is cooling. When the car engine runs, it generates a large amount of heat. If not dissipated promptly, this can lead to engine overheating, affecting the vehicle's performance and lifespan. The condenser circulates refrigerant to remove heat from the engine and dissipates it into the air through cooling fins. This maintains the engine's normal operating temperature, improving combustion efficiency and power output.
■ Secondly, the automobile condenser also performs dehumidifying function. In humid environments, air moisture inside the car's can condense into water droplets, potentially obstructing the driver's vision and promoting mold growth and odors. During the refrigerant circulation process, the condenser absorbs moisture from the air, condensing it into water, which is then expelled through a drain pipe. This maintains dry air inside the vehicle, enhancing driving comfort and safety.
■ The automobile condenser also provides a cooling effect. In hot summer months, the air conditioning system uses the condenser to absorb heat from the air, then sends cooled air into the car through the evaporator, lowering the internal temperature. The condenser plays a crucial role in this process by converting high-temperature, high-pressure refrigerant gas into a low-temperature, low-pressure liquid, providing the necessary conditions for the cooling cycle.
■ Beyond these functions, the automobile condenser has other important roles. For instance, it helps reduce engine noise and vibration, improving driving stability and comfort. The condenser also protects other car components, such as the engine water pump and cooling fan, preventing damage from overheating.

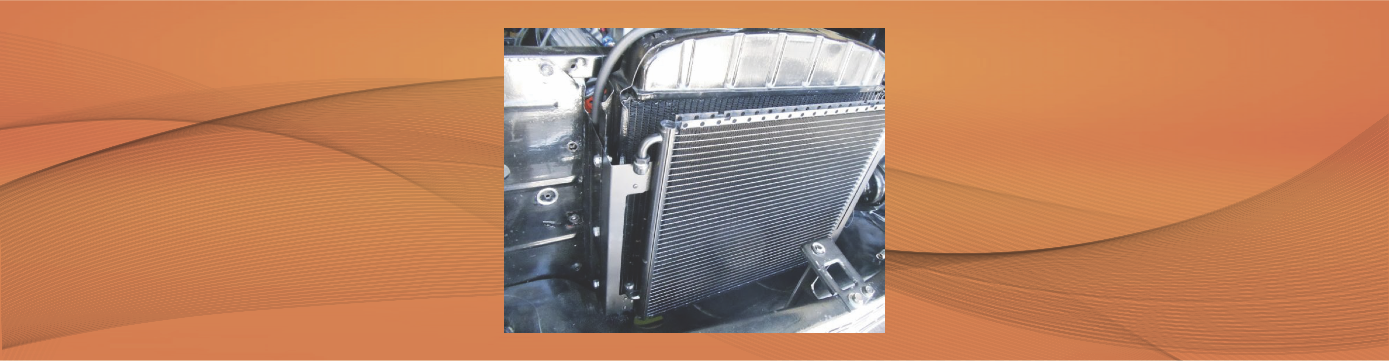

MASUMA automobile condensers typically consist of the following main parts:
■ Cooling fins: These are the main heat dissipation components of the condenser, composed of a series of parallel metal plates, usually made of aluminum for good thermal conductivity. The design of the cooling fins aims to increase surface area for better heat dissipation. As coolant flows through the fins, heat transfers from the coolant to the fins and is dissipated through contact with the surrounding air.
■ Cooling tubes: These form the piping system connecting the cooling fins, typically made of copper or aluminum. The cooling tubes guide the coolant to the cooling fins and transfer heat from the coolant to the fins. The design and layout of cooling tubes significantly impact the cooling effectiveness, often employing multiple channels to increase contact area between coolant and cooling fins.
■ Condenser fan: The condenser fan is located at the rear of the condenser, used to increase air flow and improve heat dissipation effect. When the vehicle is in motion, the wind generated by the car's forward movement can aid in heat dissipation. However, during low-speed driving or when the car is stationary, the condenser fan plays a vital role. The condenser fan enhances the cooling effect by drawing in air and expelling it, thus increasing air circulation.
■ Drain pipe: Positioned at the bottom of the condenser, this pipe expels condensed moisture. During the condensation process, the condenser absorbs moisture from the air, condensing it into water droplets. The design and location of the drain pipe ensure smooth water drainage, preventing droplets from accumulating inside the condenser.
■ Inlet and outlet pipes: These are the connecting channels between the condenser and other components (such as the compressor and evaporator). Coolant enters the condenser through the inlet pipe and, after cooling, exits through the outlet pipe. The design and layout of these pipes significantly affect coolant flow and cooling efficiency.

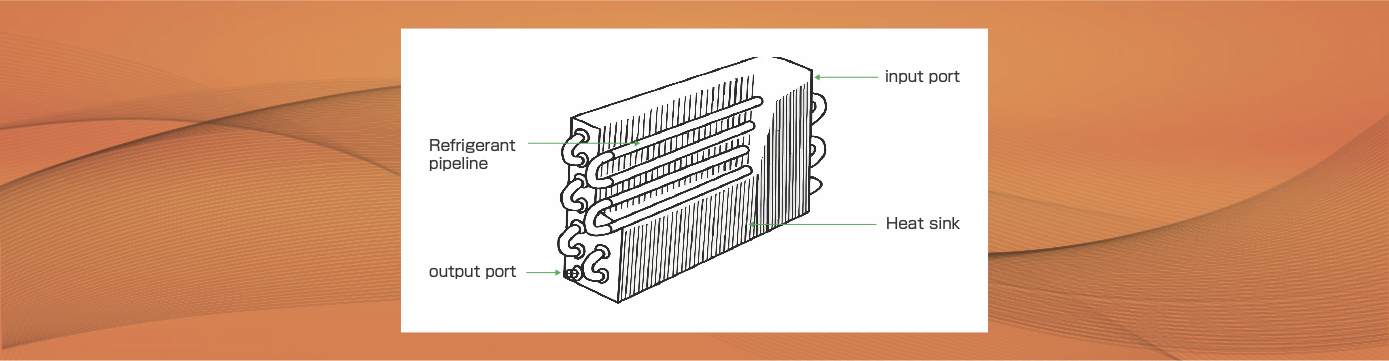

■ The working principle of an automobile air conditioning condenser involves utilizing refrigerant in a high-temperature, high-pressure state to release heat, cooling and condensing it into a liquid state. A fan then dissipates this heat into the external air. The condenser typically consists of a series of small tubes and fins, increasing the heat dissipation area and improving efficiency. The design and manufacture of condensers consider factors such as heat dissipation efficiency, corrosion resistance, and high-temperature tolerance to ensure normal operation and long-term stability.

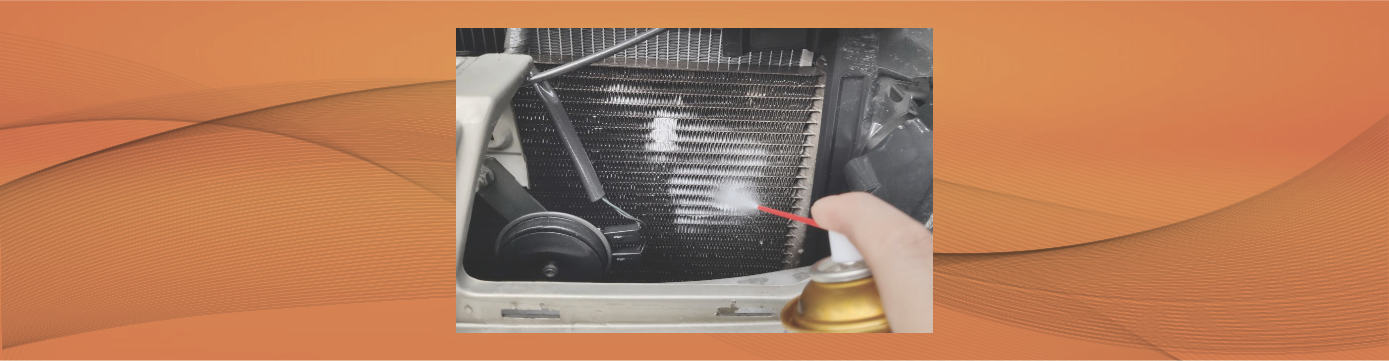

■ Cleaning the condenser surface:
The condenser surface easily accumulates dust, grease, and other debris, which can affect its heat dissipation efficiency. Therefore, regular cleaning of the condenser surface is crucial. You can use a high-pressure water gun or specialized condenser cleaning agents. Be careful not to apply excessive pressure during cleaning to avoid damaging the condenser.
■ Checking the condenser fan:
The proper functioning of the condenser fan is vital for the condenser's heat dissipation. Regularly inspect the fan's working condition to ensure it operates normally. If you notice unusual noise or malfunction, promptly repair or replace the fan.
■ Inspecting the coolant:
Coolant is the key to the condenser's normal operation. Regularly check the coolant level and quality, ensuring its concentration and freezing point meet requirements. If the coolant appears cloudy or the level is low, replace or add coolant promptly.
■ Examining condenser pipes:
Periodically inspect the condenser pipes for leaks or blockages. If leaks are found, repair them immediately. For blockages, use specialized condenser cleaning agents to clear the pipes.
■ Preventing condenser damage:
While driving, be cautious to avoid external impacts or damage to the condenser. Try to avoid driving in harsh road conditions to prevent excessive shock and vibration that could harm the condenser.
■ Regular maintenance:
In addition to the above measures, regular maintenance is crucial. Follow the car manufacturer's recommendations for periodic condenser maintenance and inspection. This helps identify potential issues early and ensures the condenser's proper functioning.
■ In summary, maintaining the automobile condenser is vital for the vehicle's normal operation and engine longevity. Regular cleaning of the condenser surface, checking the fan, coolant, and pipes, preventing damage, and scheduled maintenance are all important measures to keep the condenser working properly. Through correct care and maintenance, we can extend the condenser's lifespan and improve the car's performance and reliability.

■ In conclusion, the automobile condenser plays a crucial role in the car's air conditioning system. It not only cools the engine and maintains its normal operating temperature but also dehumidifies, cools, and provides a comfortable driving environment. Therefore, regular inspection and maintenance of the automobile condenser's working condition, keeping it clean and functioning normally, are essential for the vehicle's performance and longevity.
