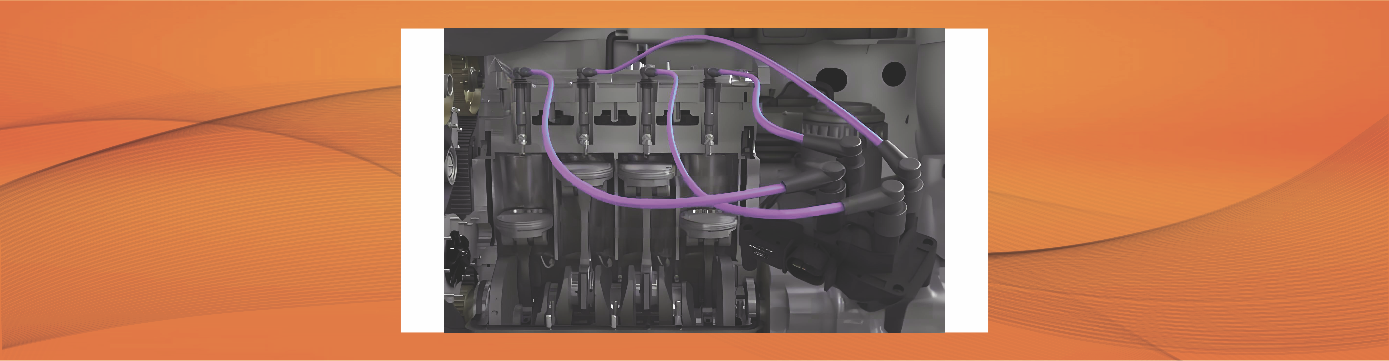

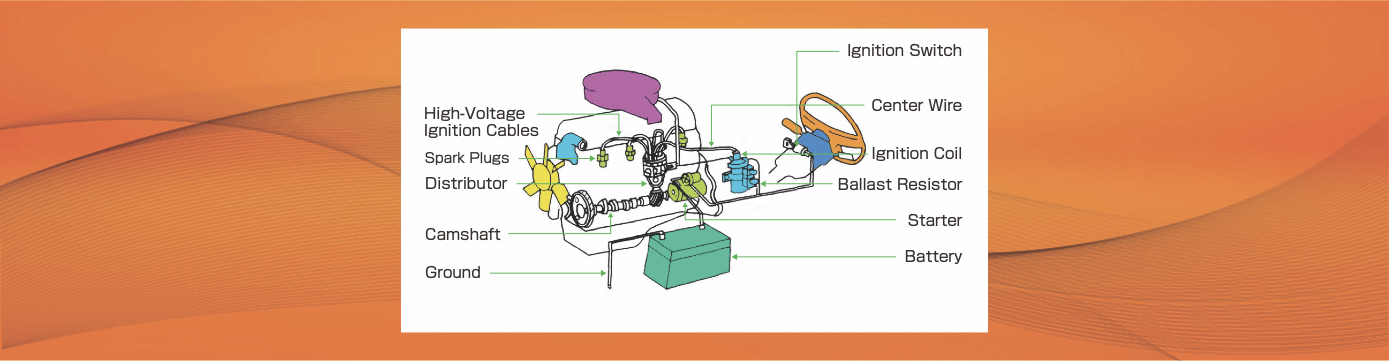

■ High-voltage ignition cables, also known as spark plug wires, cylinder wires, distributor wires, or high-voltage ignition harnesses, are a critical component of an automobile engine's ignition system. Their primary function is to conduct the high voltage generated by the ignition coil to the spark plugs, thereby initiating a spark jump to ignite the air-fuel mixture within the cylinders, enabling normal engine operation. The number of high-voltage ignition cables is typically determined by the number of engine cylinders. Each cable consists of a connected high-voltage ignition wire, with terminal connectors and insulating dust boots on both ends, used to connect to the spark plug and the high-voltage ignition coil.

■ The current transmitted internally through high-voltage cables is minimal, placing low demands on the internal metal conductor. However, the voltage they carry is very high, generally around tens of thousands of volts. Consequently, the requirements for the external insulation are stringent. Insulation material aging or reduced insulation strength can lead to electrical leakage, potentially damaging other electrical systems or high-voltage system.

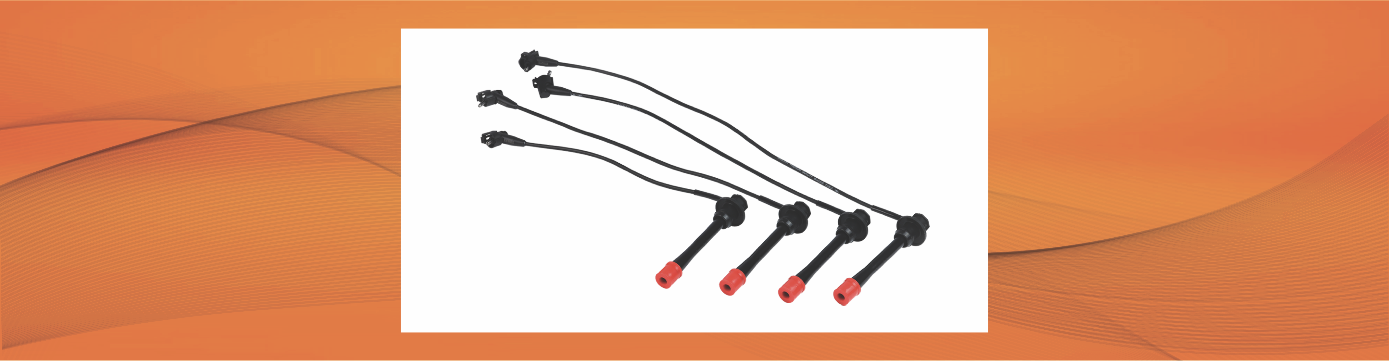

■ Automotive high-voltage cables generally consist of three parts: the conductive core, the inner insulation layer, and the outer insulation layer. Based on internal structure, they can be categorized as single-core, triple-core, quad-core, or penta-core. A higher number of cores means lower resistance and higher ignition intensity, but comes with a higher price. Furthermore, reputable high-voltage cables utilize silicone technology, capable of withstanding a temperature range of -40°C to 220°C and a high voltage of up to 35KV. However, more internal cores allow for greater current passage, which necessitates better shielding material in the cable's outer jacket. Otherwise, electromagnetic interference (EMI) may occur, disrupting the vehicle's audio system or engine control computer.
■ Functions:
1. To protect the ignition system and ensure the normal operation of all vehicle electrical systems.
2. To increase ignition voltage. When a spark plug is heavily fouled with carbon, it may leak electricity, causing misfire. Resistive cables help boost the ignition voltage, making it easier to arc across the spark gap, restoring normal spark intensity.
3. Resistive high-voltage cables help equalize current distribution in the high-voltage circuit.
4. To extend the spark plug's discharge duration, improving ignition efficiency.

■ Many people know that spark plugs are consumables requiring regular replacement, but other components of the ignition system, such as high-voltage cables, are often overlooked. In fact, when our engine operates normally, the pulsed current in the ignition cables can reach tens of thousands of volts! Prolonged exposure to harsh conditions of high temperature, dust, and vibration inevitably leads to aging or even damage. Once a high-voltage cable is damaged or aged, and not replaced promptly, the ignition energy value will significantly decrease. A butterfly effect may ensue: increased fuel consumption, reduced power output, or even engine stalling.
■ Common failure modes for high-voltage cables are electrical leakage and open circuit. If, upon inspection, A removed cable should be replaced immediately if its outer jacket is damaged, shows signs of arcing/breakdown, or has leakage marks. Cable inspection can follow these steps:
(1) Visual Inspection: Bend the high-voltage cable into an arc and visually inspect. If cracks, hardening, oil contamination causing swelling, etc., are found, replacement is necessary.
(2) Cable Resistance Check: Use a multimeter to measure the cable's resistance. If the resistance exceeds 50 kΩ, the cable should be replaced with a new one.
(3) Connect one multimeter probe to the center terminal inside the distributor cap and the other probe to the ignition coil's terminal. If the combined resistance of the ignition coil and the main high-voltage cable exceeds 25kΩ, disconnect the cable from the coil and measure it separately. If the measured resistance exceeds 15 kΩ, replace the main high-voltage cable.

■ High-voltage cables possess strong insulating properties to prevent energy loss and accidents. Generally, a set of high-voltage cables can have a service life exceeding 100,000 kilometers.
■ High-voltage cables are typically black. When nearing failure after prolonged use, yellowish cracks may appear, similar to cracks on the elongated boot covering a spark plug's insulator. This is caused by high-voltage electricity breaking down internal components.

Installation Steps

1. First, check if the length, quantity, and shape specifications of the high-voltage cables match the original vehicle requirements. If not, replace them with suitable ones.

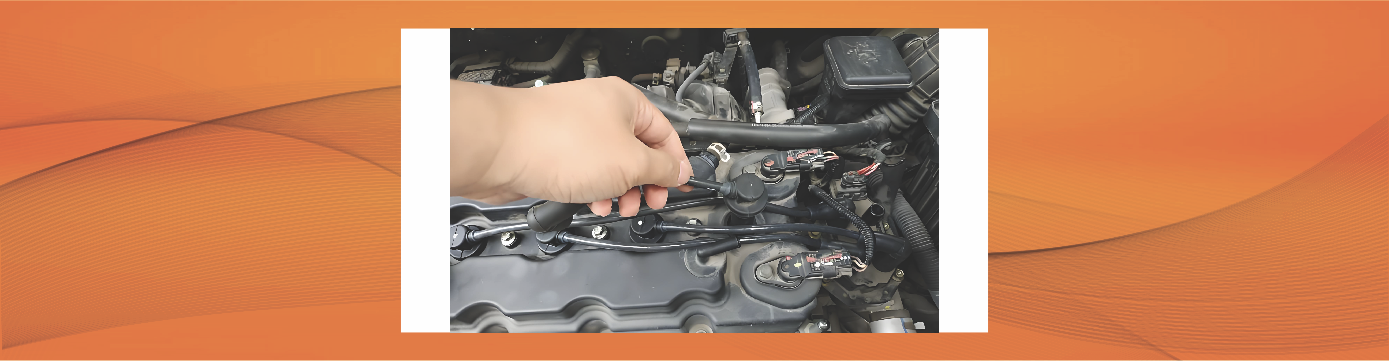

2. Install the high-voltage cable onto the spark plug, ensuring it is firmly secured. Also, ensure the cable end is free from damage or wear.

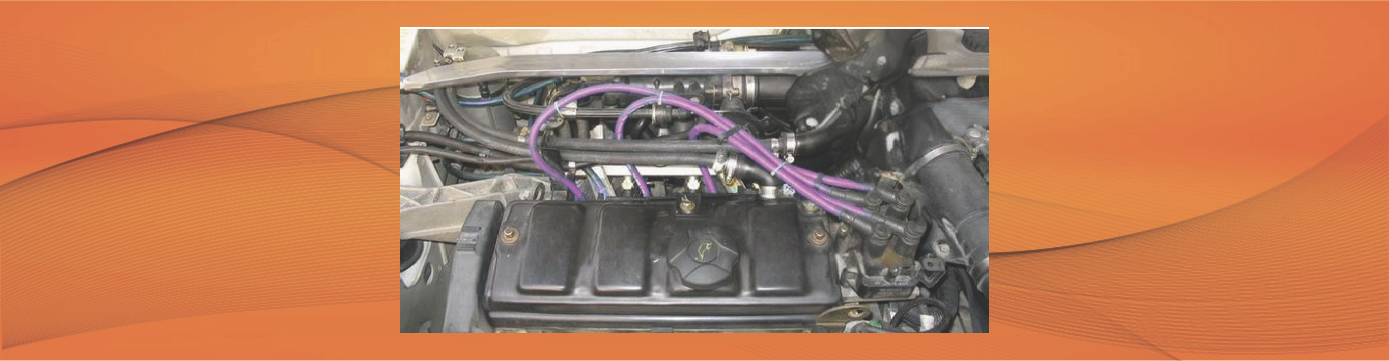

3. Route the cables from the spark plugs along the path on the engine block. During installation, ensure the cables do not rub against or collide with other components such as the air filter or oil lines.
4. Connect the high-voltage cables to the distributor or ignition coil. Before connecting, clean the connection points to ensure quality.
5. After installing the high-voltage cables, check that all connections are tight and that the cables are firmly secured to the vehicle.
6. Finally, start the vehicle and check the operation of the high-voltage cables. If any abnormalities are found, repair or replace the cables promptly.

Maintenance Tips

■ The key to maintaining high-voltage ignition cables is regular cleaning, inspection, and replacement. Specific methods are as follows:
■ Regular Cleaning: After prolonged use, high-voltage ignition cables can accumulate dust and contaminants, affecting conductivity and potentially causing ignition faults. Therefore, use a specialized electrical cleaner to carefully clean each component, ensuring their surfaces are clean.
■ Inspect Connections: Ensure all related wiring is intact and properly connected to avoid voltage impact. Check that all connections are secure, as damaged insulation can lead to high-voltage leakage, affecting ignition performance.
■ Prevent Moisture Ingress: During damp, cold winters, moisture can easily seep into the vehicle's electrical system, causing poor contact, short circuits, etc. Therefore, regularly inspect all wiring terminals and connection points, ensuring they are not corroded by water and remain clean. Specialized moisture-resistant tape can be used for wrapping to enhance moisture protection.
■ Replace Aged Components: High-voltage ignition cables operate in harsh environments of high temperature, dust, and vibration, inevitably leading to aging or even damage. Therefore, like spark plugs, high-voltage cable sets should be replaced periodically to prevent damage from extended use. Even without obvious faults, it is recommended to replace the entire set approximately every 40,000 to 50,000 kilometers.
■ By implementing the above maintenance measures, the service life of high-voltage ignition cables can be effectively extended, ensuring the proper operation of the vehicle's ignition system and enhancing both vehicle performance and safety.
